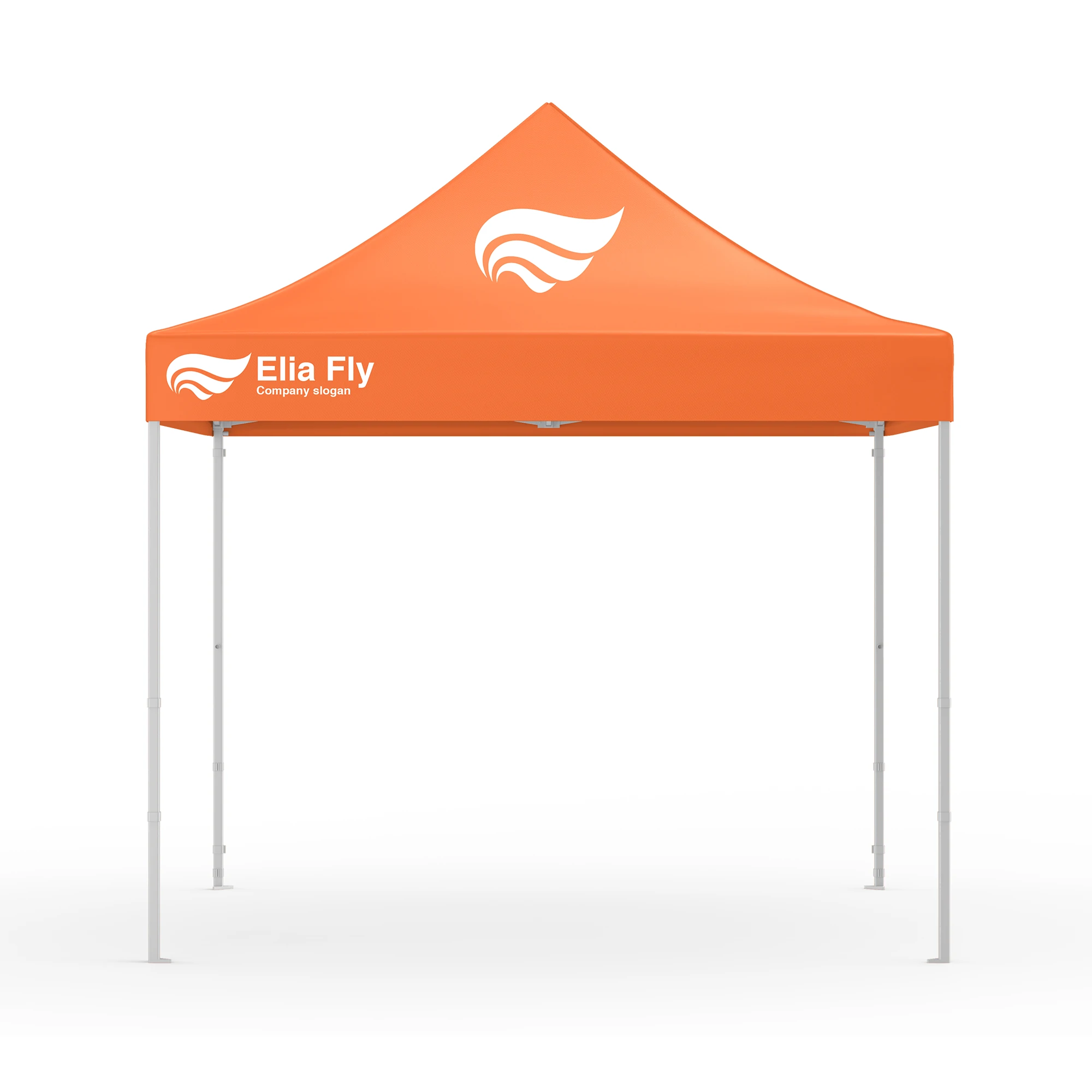

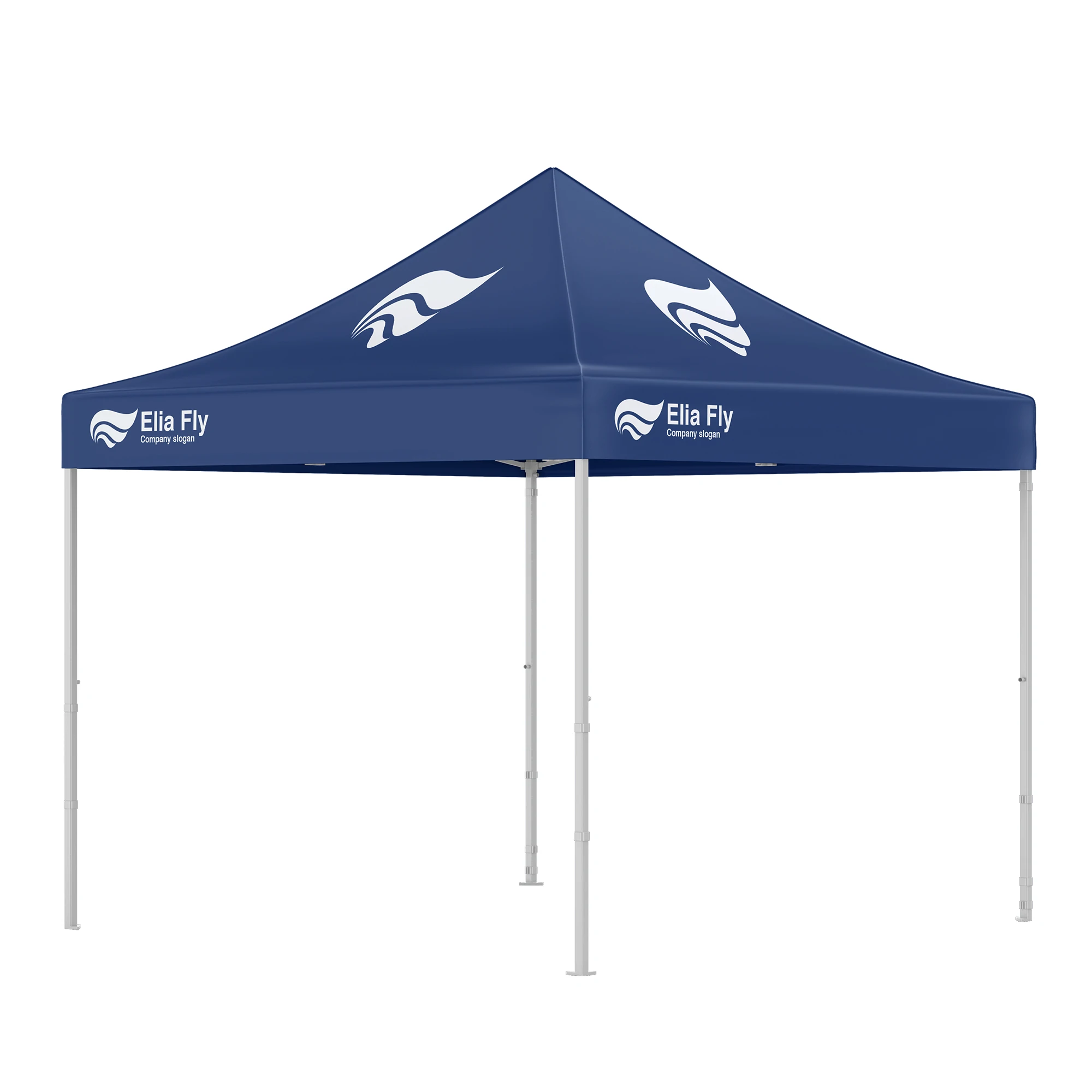

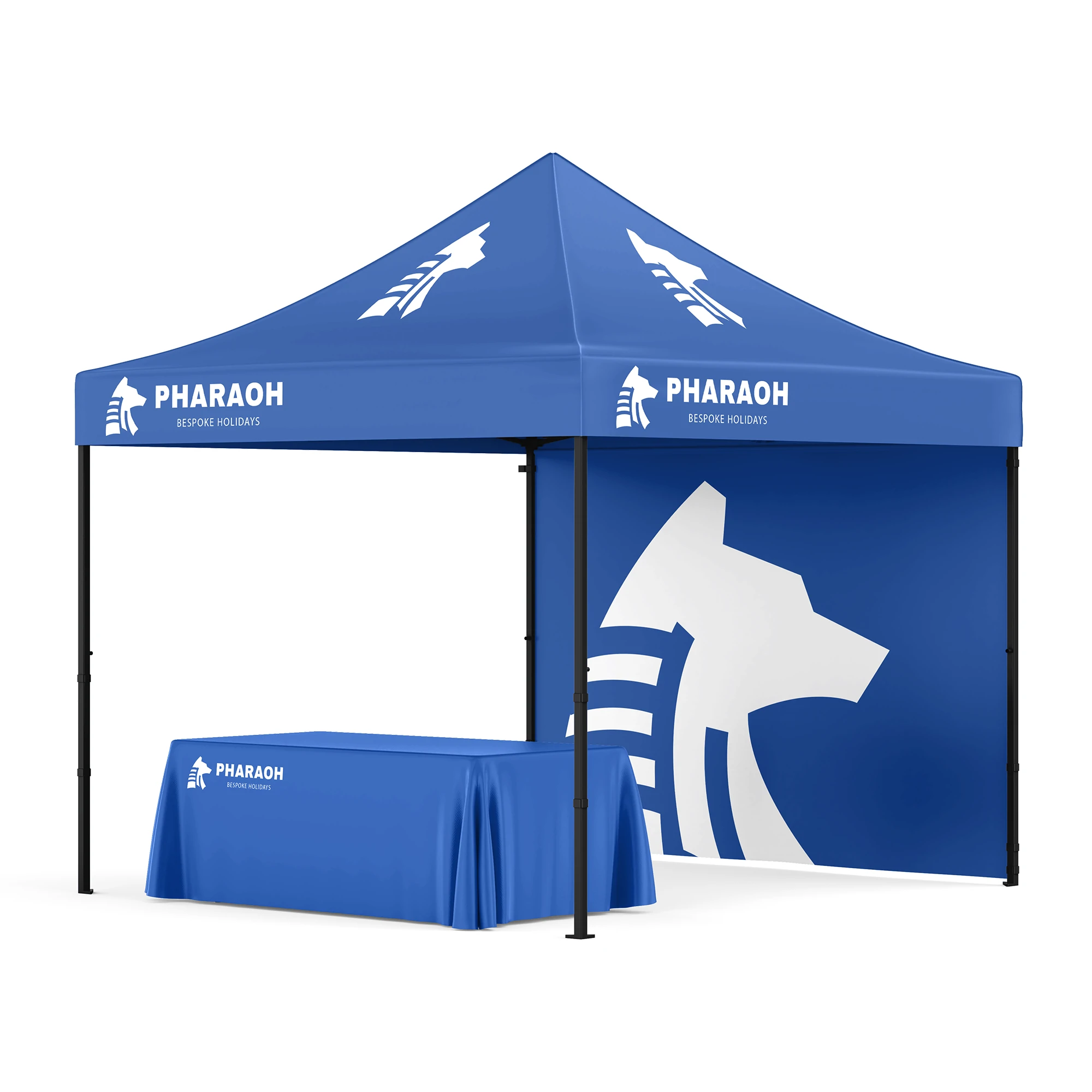

3x3m Gazebo

Features Description Dimensions Total height of the assembled gazebo: 340 cm. Total width of the assembled gazebo: 300 cm. Total length of the assembled gazebo: 300 […]

  • Design requirements

    Add your reference link here (For Editable Source Files)

    Provide a Google Drive link, Canva Link or any source to download your source file. Please ensure the content is not copyrighted or licensed, as we can only use non-restricted materials.

    You can upload single or multiple files

    • (max file size 3 GB)

    Need Help with Custom Design?

    Would you like us to design your requirement for you?

    Custom Design Details

    *Briefly describe your requirement

    You can upload single or multiple files

    • (max file size 3 GB)

    Would you like us to design your new logo for you?

    Custom Design Details

    *Briefly describe your requirement

    You can upload single or multiple files

    • (max file size 3 GB)

    Do you need a custom QR code?

    QR Details

    *Add your contact details, website link, email address, or any other information you would like to include in the QR design.

    To receive a design proof, please enter the details below.

    Add your WhatsApp Number Here

    *Add your Email Address Here

    Need Help with Custom Design?

  • *Fabric

    Reset options
Features Description
Dimensions Total height of the assembled gazebo: 340 cm.

Total width of the assembled gazebo: 300 cm.

Total length of the assembled gazebo: 300 cm.

Size of the stowed gazebo: 156x26x26 cm.
Structure



 The structure of the gazebo consists of hexagonally shaped aluminium sections.

Dimensions and characteristics of the sections:

  • Feet/legs: 4 legs made of 40 mm x 40 mm hexagons with a thickness of 1.2 mm.
  • Internal roof structure: composed of a series of 13×26 mm cross bars, with a thickness of 1.1 mm and an internal reinforcement made of black hardened plastic.

The height of the unfolded legs is 240 cm.
Cover It includes the roof or dome and the skirt that covers the perimeter of the metal structure.

The roof can be made of one of the following fabrics:

  • 100% polyester fabric 115 g/m².
  • Waterproof fabric 100% polyester 180 g/m².

Both have the following characteristics:

  • Weaving: 50% weft and 50% warp.
  • 100% polyester multifilament 3-strand yarn.
  • Double stitched with special thread for outdoor use.
  • Double hem with a width of 10 mm.
  • 7 mm symmetrical double stitching (1.5 mm from the edges).
  • Stitch width: 5 mm.
  • It is particularly water and air resistant, colourfast and washable.
  • Anti-pollution surface treatment.


Weight





 Variable depending on the type of fabric chosen.

Fabric type Approximate weight
115 g/m² flag fabric 17,5 kg
180 g/m² waterproof fabric 20 kg


Colour and design





 The colour of the gazebo fabric is customisable, as are the designs.

The internal structure is metallic grey.

The colour of the structure’s joints is black.
Printing 115 g/m² – Inkjet sublimation printing in CMYK (four-colour process) on one side with 96% colour transfer using official inks.

180 g/m² – UV-cured and cured printing, one side, with official inks.
Complements (not included)



 The following items can be purchased separately to complete the gazebo assembly:

– Complete wall.

– Counter wall.

– Window wall.

– Door wall.

– Carrying gazebo case.

– Tent bases, which help to give more stability to the whole structure.

– Pack Fly Banners Feather and Drop with gazebo base.

– Banners on the gazebo legs.
Use The gazebos are suitable for both indoor and outdoor use.

With the roof already installed on the structure, the gazebo is easy to unfold, taking less than 10 minutes to complete.

Once folded, it stands out for its small volume, which makes it easy to store and transport.
